Printed Circuit Board (PCB) vias are conducting traces of minute size that bond different layers in a multilayer PCB in order to support the transfer and transmission of electric signals and power between them. With growing requirements for performance at reduced package size by modern-day electronics, vias have found crucial applications for:
- Miniaturization – Enabling thin, complex topologies of a circuit.
- High-Speed Signals – Reducing signal loss during RF and high-frequency applications.
- Multilayer PCBs – Facilitating inner layer-to-inner layer connections.
Today, PCBs would be thicker, slower, and less efficient without vias. This guide explores the different types of vias, their functions, manufacturing processes, and design best practices, helping engineers optimize their designs for performance and reliability.
What is a PCB Via?
Small holes known as PCB vias are drilled between the layers of a PCB. The holes are plated over with a conductive material, typically copper. Electric signals can pass through the layers of the board because of these conductive paths, making it possible to have more complex and smaller designs for circuits. Vias allow connectivity between pieces on different levels and also provide power and ground connections.
Functions of PCB Vias
Vias serve multiple critical roles in PCB design:
- Electrical Connectivity – Enable layer-to-layer connections in multilayer PCBs.
- Signal Routing – Needed for high-speed, RF, and impedance-controlled traces.
- Power & Ground Distribution – Reduces loop inductance for stable power delivery networks.
- Thermal Management – Help with heat dissipation in power electronics.
- Mechanical Stability – Strengthens bonding between layers in some structures.
PCB Via Types
There are numerous types of vias, one for a particular use. Let us discuss each of them separately:
Through-Hole Vias
A through-hole via is punched from one side to the opposite side of the whole PCB, connecting all the layers in one. It is simple to produce and even for high current applications. But it takes space on all layers, so not so much favored for high-density boards.
Blind Vias
A blind via links an external layer to one or more internal layers without traversing the entire board. It conserves space on dense PCBs, with maximum routing efficiency. It is costlier to produce owing to the accuracy needed in controlled-depth drilling.
Buried Vias
A buried via is used for interconnecting internal layers only and is not visible from the outer faces of the PCB. It is a good utilization of space through routing, hence appropriate for complex multilayer assemblies. However, it is the most costly as additional fabrication steps are required to link the inner layers.
Microvias
Microvias refer to vias of small diameters, typically less than 150μm, laser-drilled for application in HDI PCB manufacturing to enable fine-pitch component placement ability. Microvias can be classified into two general categories: stacked microvias, stacked vertically for high-density interconnection, and staggered microvias, with offset arrays for mitigating mechanical stress. The vias become more pertinent in high-speed electronics and telephony applications through space savings. The vias create a demand for high-end manufacturing, thus increasing complexity and cost in manufacturing.
Via-in Pad
A via-in-pad is a technique in which a via is located under a component pad, thereby improving the electrical performance by reducing signal lengths and inductance. In order to prevent soldering issues, the via is typically filled and topped with conductive or non-conductive material to present a flat surface to facilitate successful component placement. This technique finds use quite appreciably in high-speed and high-density PCB designs.
Stacked Vias
Stacking vias is the process of combining blind or buried vias and aligning them vertically to provide a continuous conductive channel through multiple PCB layers. Stacking vias improves routing flexibility and signal integrity by connecting non-adjacent layers.
Staggered Vias
Staggered vias are offset horizontally rather than vertically, just like stacked vias. This arrangement lessens the effects of crosstalk and signal reflections, making staggered vias suitable for high-speed and high-frequency applications.

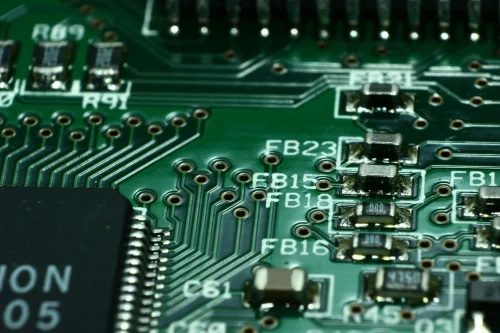

PCB Via Manufacturing Process
Reliable PCB vias are manufactured using several accurate procedures:
Step 1: Drilling
Laser drilling produces blind and microvias, while through-hole vias are produced by mechanical drills. Through-hole vias and large vias in blind via types are produced through mechanical drilling.
- Mechanical Drilling – Used for through-hole and larger vias.
- Laser Drilling – Used for microvias in HDI PCBs.
Step 2: Deburring & Cleaning
Copper smudge and debris are eliminated in order to offer suitable plating.
Step 3: Electroless Copper Deposition
The PCB via walls are coated with a thin conductive layer through a chemical process.
Step 4: Electroplating
A thicker copper layer is added for conductivity and durability.
Step 5: Via Filling
Certain vias (such as via-in-pad) are filled with conductive or non-conductive material to provide added dependability.
Step 6: Solder Mask Application
Hides the via to prevent oxidation and solder wicking, short circuits that may be induced by it. And open vias are used for test points or thermal dissipation.
Step 7: Final Inspection
AOI (Automated Optical Inspection) inspects for defects. X-ray and electrical testing confirm connectivity and quality.
PCB Via Design Considerations
Via Aspect Ratio Calculator
The aspect ratio of a via is the ratio of its diameter to its depth. The thickness of the plating and the degree to which the hole can conduct electricity are determined by the aspect ratio. A longer plating time for a thin, tall structure might lead to a thicker plating layer. A thinner layer of coating might affect the degree to which a low aspect ratio via conducts electricity. A digital aspect ratio calculator helps to determine the best aspect ratio for a specific design.
Standard Via Sizes in Mils
Standard via sizes are best described in mils. They can differ according to the ability of the manufacturer and the PCB thickness. The size of a hole can have an impact on how costly it is to make, how useful it will be, and how durable it will be. While choosing the via size, it should be possible to match it with the manufacturer's ability and be appropriate for design requirements.
PCB Annular Ring Calculator
The annular ring is the copper ring that encircles the via. The ring thickness around the hole is extremely important to the efficiency with which the hole can function and for how long. Poor conductivity and reliability can be created by a bad contact between the via and the copper pad by providing too thin a ring around it. Enlarging the circular ring will decrease the board density and also production cost. The ideal PCB via size for an annular ring in a design can be found using a PCB annular ring calculator.
Via Selection & Placement
Choose through-hole vias for cost-effective, simple designs, and microvias for HDI board layouts and high-pitch components. To locate vias optimally, do not place them under BGA pads whenever possible, and maintain sufficient distance from surrounding traces to prevent signal interference. Always adhere to DFM (Design for Manufacturability) guidelines to minimize fabrication errors and ensure reliability.
Case Study: Cracked Vias Due to Thermal Stress
A PCBA maker that makes consumer electronics had PCB failures in a high-power LED driver. During inspection, cracked vias were detected due to:
- Excessive thermal cycling (worst across plating thickness).
- Insufficient annular ring (drilling misalignment).
- Solution: Improved plating quality and via placement.
Other common issues:
- Plating voids (low-quality electroplating).
- Solder mask tenting failures (resulting in shorts).
Conclusion
PCB vias must be built in order to create dependable, small, and high-performance circuit boards. By understanding their types, purposes, and design problems, engineers are able to optimize PCB layouts into more efficient ones for improved performance and producibility. Good placement and selection can largely be the key to the success of your end product, whether you are building a plain board or a high-density multilayer PCB.
Collaborate with our PCB manufacturer in advance to optimize via design for manufacturability.
Frequently Asked Questions
How do I minimize via stubs in high-speed designs?
Employ PCB backdrilling to remove unused portions of the via.
Can vias carry high current?
Through-hole vias can carry higher currents due to thicker plating.
What is the minimum via size?
Laser-drilled microvias can be ≤ 25µm, but conventional mechanical vias are typically ≥ 100µm.
Should vias be tented or open?
Tented vias prevent solder wicking, while open vias aid in thermal dissipation or testability.
Can vias be placed under BGA pads?
Yes, but via-in-pad needs filling and capping to prevent solder wicking.
What's the maximum aspect ratio for successful plating?
Generally 8:1 for mechanical drilling, 1:1 for microvias.
