Rigid-Flex PCB

Rigid-flex PCBs use a combination of flexible and rigid board technologies in an application. Most rigid flex boards contain multiple layers of flexible circuit substrates attached to one or more rigid boards externally or internally. Rigid-flex designs have more challenges than rigid PCBs. Because these boards are designed in a 3D space, which also offers greater spatial efficiency

FC is committed to producing high-quality rigid-flex PCBs with the highest quality service. We can ensure that each PCB board meets specific requirements and design constraints.

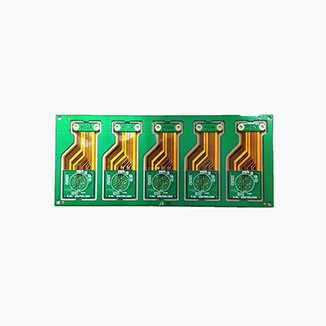

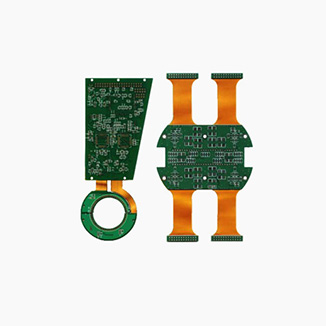

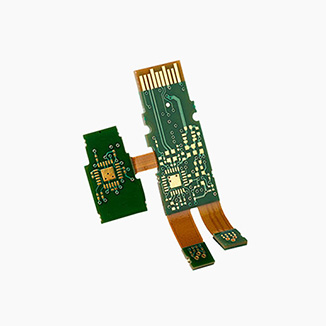

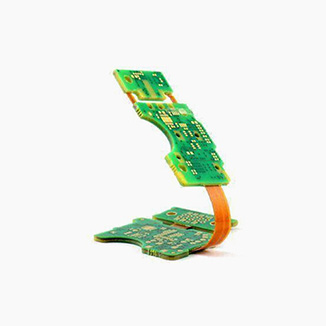

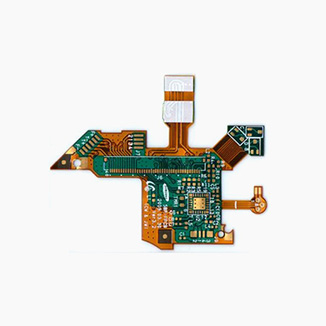

FC Rigid-flex PCB Display

FC Rigid-flex PCB Capabilities

Rigid-flex pcbManufacture capacity
Layer Counts1-8Layer
Base MaterialPolyimide/FR4
Copper foil thickness1oz / 1/2oz/ 1/3oz
PI thickness25μm / 12.5μm
Board thickness0.07mm-0.5mm
Adhesive13μm
Max. board size400*800 mm
Product thickness tolerance±0.03mm
Min. Hole Diameter0.1mm
Min. Line Width / Distance0.04mm
Etching tolerance±0.015mm
PTH Hole dia. tolerance±0.03mm
NPTH Hole dia. tolerance±0.05mm
Outline Dimension tolerance±0.075mm
Stiffener material type±0.075mm PI / FR4 / PET / Steel piece
Outline profilePunching / Laser cut / Drilled
Surface finishHASL / OSP / ENIG / Immersion silver / Tin / Ni
Solder mask colorMulti-color
Silkscreen colorWhite/Black
Acceptable file formatCAD / Gerber file / powerpcb / AutoCAD / P-cad / CAM-350 /
